Description
Hamamatsu L10211 Lightningcure Flash Light Source LF1 consists of a xenon flash lamp, power supply and control circuit, all integrated into one package. Selecting the desired optical system components such as the lightguide allows the LF1 to emit a variety of different types of light. Light emission is highly intense for a period of microseconds, making the LF1 ideal for strobe light sources. The LF1 is also easy to use and handle, offering features such as programmable light emission, flash count and control from a PC.
Application
- Factory automation
- Semiconductor
- Inspection
- Image processing
- Fluorescence microscope
Features
- Long service life: 1 × 10^8 flashes,
- High stability: ±5 % (typical),

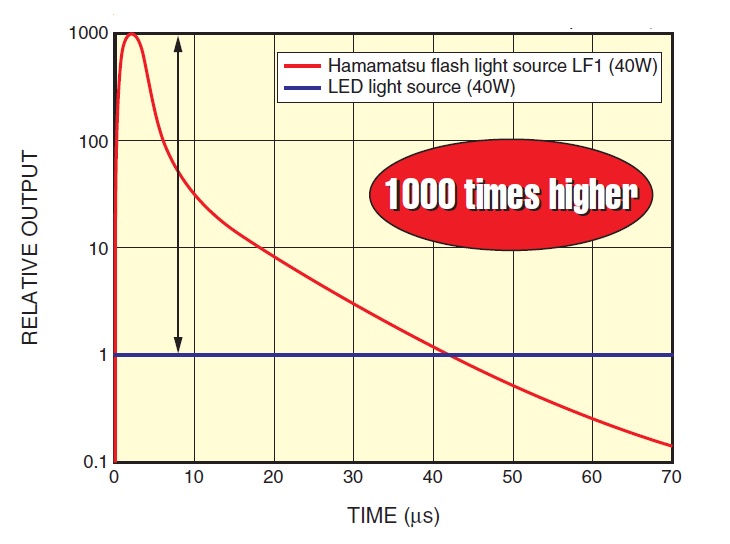

- Instantaneously high peak output,
- Ease for synchronization with CCD camera,
- Filter attachable,
- Low noise and connectable to a PC,
- Programmable light emission.
Specifications
|
Type No. |
Lightguide connector |
Spectral distribution (nm) |
Internal capacitor (mF) |
|
L10211-03-01 |
Front panel A |
290 to 1600 (synthetic silica light guide B) |
1 |
|
L10211-03-02 |
2 |
||
|
L10211-03-04 |
4 |
||
|
L10211-04-01 |
385 to 1600 (glass light guide B) |
1 |
|
|
L10211-04-02 |
2 |
||
|
L10211-04-04 |
4 |
||
|
L10212-03-01 |
Rear panel A |
290 to 1600 (synthetic silica light guide B) |
1 |
|
L10212-03-02 |
2 |
||
|
L10212-03-04 |
4 |
||
|
L10212-04-01 |
385 to 1600 (glass light guide B) |
1 |
|
|
L10212-04-02 |
2 |
||
|
L10212-04-04 |
4 |
|
Parameters |
Description |
Unit |
|||||
|
Flash duration (FWHM) |
2 to 4 |
ms |
|||||
|
Delay time |
20 |
ms Max. |
|||||
|
Light output stability A (Typ.) |
±5 |
% |
|||||
|
Input voltage (AC) |
100 to 240 |
V |
|||||
|
Power consumption (Max.) |
150 |
W |
|||||
|
Lamp guaranteed life B |
1 x 10^8 |
Flash |
|||||
|
Light emission control |
Light emission by internal trigger or external trigger |
— |
|||||
|
Lamp for maintenance |
L10213-11 |
— |
|||||
|
Trigger socket for maintenance |
E10303-02 |
— |
|||||
|
Operating ambient temperature |
+5 to +35 |
°C |
|||||
|
Operating ambient humidity |
10 to 80 (No condensation) |
% |
|||||
|
Storage temperature |
-10 to +70 |
°C |
|||||
|
Storage humidity |
Below 80 (No condensation) |
% |
|||||
|
External control |
RS-232C, D-SUB 25 Pin |
— |
|||||
|
Applicable standards |
EN61326 : CLASS A |
— |
|||||
