Description
Hamamatsu L10290 UV-VIS fiber light source use a high-brightness deuterium lamp and a tungsten-halogen lamp housed in a small case, this light source outputs 200 to 1600 nm light through a light guide (sold separately). The output light intensity is about twice that of current models. Along with a compact size and light weight that makes it easy to carry, this light source is available with useful functions such as a shutter mechanism and external control to make it even easier to use. This new light source is also usable with various types of portable devices.
Application
- Spectrophotometry
- Environmental Measurement
- Absorption Spectrum Measurement
- Micro Titer Plate Reader
- Pharmaceutical Testing
- Film Thickness Measurement
- Semiconductor Inspection
- Optical Component Inspection
Features
- High Output : Twice Intensity (Compared to conventional model)
- High Stability : Fluctuation 0.004 %p-p(Typ.) (Equivalent to 2 x 10-5 A.U.)
- Long Life Lamp : 2000 hours
- External Control
- Shutter Function
- Filter Holder (Sold separately)
Specifications
|
Parameter |
Specifications |
|
|
Spectral Distribution |

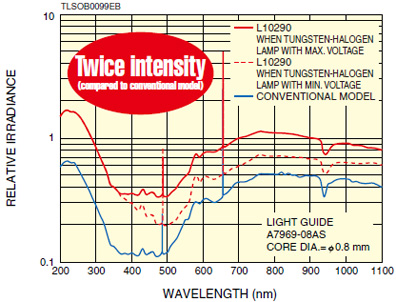

200 nm to 1600 nm 1 |
|
|
Built-in Lamp |
High Brightness Deuterium Lamp 9 W Tungsten Halogen Lamp 2 |
|
|
OutputStability |
Fluctuation (Typ.) |
0.004 % p-p (Equivalent to 2 ´ 10-5 A.U.) |
|
Drift (Max.) |
±0.3 %/h |
|
|
Input Voltage (AC) |
100 V to 240 V (100 V/200 V Auto Switching)Single Phase 50 Hz/60 Hz |
|
|
Power Consumption (Max.) |
140 VA |
|
|
Weight |
Approx. 4 kg |
|
|
Light Guide Connector |
SMA905D |
|
|
Shutter |
Included |
|
|
External Control |
Lamp ON/OFF 3 |
|
|
Shutter open/close |
||
|
Status Signal for Lamp ON/OFF and Main Power ON/OFF |
||
|
Main Unit Switch |
Main Power ON/OFF |
|
|
Lamp ON/OFF 3 |
||
|
Shutter open/close |
||
|
Applicable Standard |
CE Marking |
|
—
