Description
The Hamamatsu part number L10671 is the compact UV-VIS fiber light source using a S2D2 (Stable & Small Deuterium) lamp. The L10671 is the world’s first light source that offers high radiant power and high stability despite its compact size. Besides being compact and easy to carry, the L10671 operates on a low voltage. These features make the L10671 ideal for all types of portable devices requiring a UV-VIS light source. (Light guide is sold separately.)
Applications
- Spectrophotometry,
- Environmental Measurement,
- Film Thickness Measurement,
- Biological Measurement etc.
Features
- Compact Size : 72 mm x 40 mm x 90 mm,
- High Stability : Fluctuation 0.004 %p-p(Typ.) (Equivalent to 2 x 10-5 A.U.),
- External Control,
- Shutter Function.

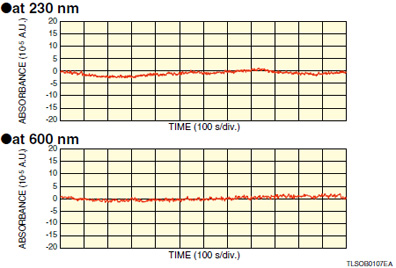

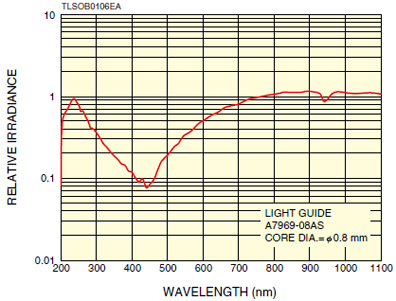

Spectral distribution & Light output stability
Specifications
Parameter |
Specifications |
|
|
Spectral Distribution |
200 nm to 1600 nm |
|
|
Built-in Lamp |
S2D2 Lamp 0.5 W Tungsten Lamp |
|
|
Output Stability |
Fluctuation (Typ.) |
0.004 % p-p (Equivalent to 2 ´ 10-5 A.U.) |
|
Drift (Max.) |
±0.25 %/h |
|
|
Input Voltage (AC) 12 |
100 V to 240 V (50 Hz/60 Hz) |
|
|
Power Consumption 1 |
10 VA |
|
|
Weight |
200 g |
|
|
Light Guide Connector |
SMA905D |
|
|
Shutter |
Included |
|
|
External Control |
Lamp ON/OFF |
|
|
Shutter open/close |
||
|
Status Signal for Lamp ON/OFF and Main Power ON/OFF |
||
|
Main Unit Switch |
Shutter open/close |
|
|
Operating Ambient Temperature |
0 °C to +40 °C |
|
|
Operating Ambient Humidity |
Below 80 % |
|
|
Storage Temperature |
-10 °C to +60 °C |
|
|
Storage Humidity |
Below 85 % |
|
|
Applicable Standard |
CE Marking |
|
