Hamamatsu L10726-01 Long Life 75W Xenon Lamp (Discontinued)

Hamamatsu L10726-01 Long Life 75W Xenon Lamp has an output of 240 to 2000 nanometers with Ozone-free silica window material. The guaranteed lifetime is 2000 hours. This significant increase in service life helps reduce time-consuming maintenance tasks such as lamp replacement and lamp position alignment. Other benefits from using the long life xenon lamp include saving natural resources and a smaller burden on the environment.

L10726-01 has been discontinued and replaced with L10725-01.

Applications

  • Semiconductor inspection equipment light source
  • Scanner light sources
  • Microscope light sources
  • Spectrophotometer light sources
  • High performance liquid chromatograph (hplc) light sources

Features

  • Ozone-free Silica window material,
  • Long Life:
    • Guaranteed Life: 2000 h,
    • Average Life: 3000 h,
  • High Stability:
    • Fluctuation (p-p): 0.2 % Typ. (1.0 % Max.),
    • Drift : ± 0.5 %/h Typ.
  • Point Light Source.

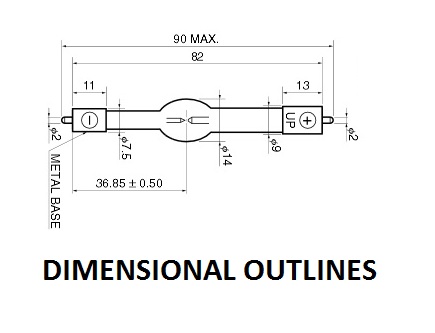

dimensional-outlines-l10725-01-l10726-01.jpgspectral-distribution-75-w-xenon-lamp.jpg


Specifications

Lamp Rating 75 W
Arc Length 1 mm
Lamp Current 5.7 +/- 0.3 A
Lamp Voltage 13.5 V
Window Material Ozone-free Silica
Spectral Distribution (Short) 240 nm
Spectral Distribution (Long) 2000 nm
Light Output Stability Drift Typ. +/- 0.5 %/h
Light Output Stability Fluctuation (p-p) Max. 1 %
Guaranteed Operation Life 2000 h
Average Life 3000 h
Orientation Vertical +/-15 or Horizontal +/-15 degree
Cooling Method Convection Cooling
Supply Voltage Min. 50 V dc
Trigger Voltage 15 kV
Weight 15 g



SKU: HAM L10726-01 Categories: , Tag:

Description

Hamamatsu L10726-01 Long Life 75W Xenon Lamp has an output of 240 to 2000 nanometers with Ozone-free silica window material. The guaranteed lifetime is 2000 hours. This significant increase in service life helps reduce time-consuming maintenance tasks such as lamp replacement and lamp position alignment. Other benefits from using the long life xenon lamp include saving natural resources and a smaller burden on the environment.

L10726-01 has been discontinued and replaced with L10725-01.

Applications

  • Semiconductor inspection equipment light source
  • Scanner light sources
  • Microscope light sources
  • Spectrophotometer light sources
  • High performance liquid chromatograph (hplc) light sources

Features

  • Ozone-free Silica window material,
  • Long Life:
    • Guaranteed Life: 2000 h,
    • Average Life: 3000 h,
  • High Stability:
    • Fluctuation (p-p): 0.2 % Typ. (1.0 % Max.),
    • Drift : ± 0.5 %/h Typ.
  • Point Light Source.

dimensional-outlines-l10725-01-l10726-01.jpgspectral-distribution-75-w-xenon-lamp.jpg


Specifications

Lamp Rating 75 W
Arc Length 1 mm
Lamp Current 5.7 +/- 0.3 A
Lamp Voltage 13.5 V
Window Material Ozone-free Silica
Spectral Distribution (Short) 240 nm
Spectral Distribution (Long) 2000 nm
Light Output Stability Drift Typ. +/- 0.5 %/h
Light Output Stability Fluctuation (p-p) Max. 1 %
Guaranteed Operation Life 2000 h
Average Life 3000 h
Orientation Vertical +/-15 or Horizontal +/-15 degree
Cooling Method Convection Cooling
Supply Voltage Min. 50 V dc
Trigger Voltage 15 kV
Weight 15 g



Additional information

Weight 0.04 lbs
Dimensions 4 × 6 × 4 in
