Description
Hamamatsu L11403 Lightningcure Linear irradiation type UV-LED unit LC-L5 is a linear irradiation type UV-LED unit equipped with high power UV-LED of 365nm or 385nm. This monochromatic light source causes no thermal damage or harmful DUV (deep UV) effects to objects being irradiated. Its low power consumption makes it an energy-saving and environmentally friendly light source. The built-in LED has a very long life of 10000 to 20000 hours, reducing costly down time for lamp replacements.
Applications
- UV Ink drying
- UV coating agent drying
- UV tape peeling
- UV gluing
- Fluorescence excitation
Features
- Needs NO duct installation & NO chiller equipment,
- Huge cuts in maintenance costs,
- Greater freedom in component layout and no worries about space,
- Environmental impact reduction,
- Long service life and huge cut in running costs,
- Uniform UV irradiation over a wide range.
Specifications
|
Parameter |
L11403-1104 |
L11403-2104 |
L11403-1112 |
L11403-2112 |
Unit |
|
|

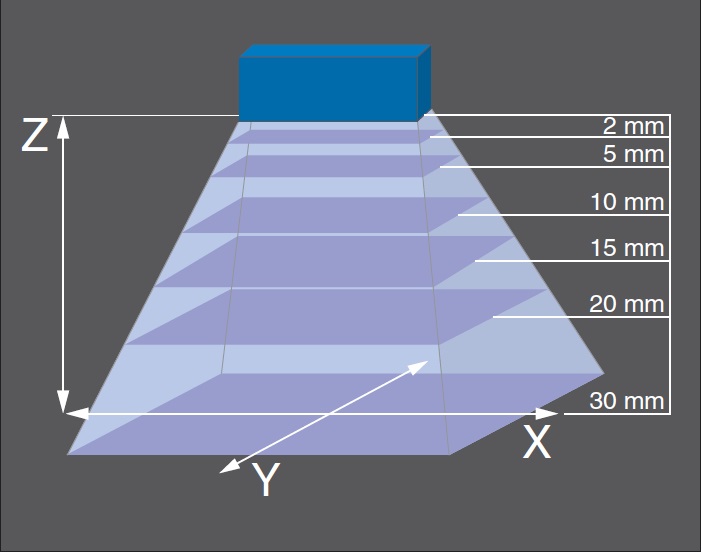

Illumination Area 1 |
10 x 105 |
10 x 305 |
mm |
|||
|
UV Irradiation Intensity 2 |
1300 |
1200 |
1300 |
1200 |
mW/cm2 |
|
|
Peak Wavelength |
365 ± 5 |
385 ± 5 |
365 ± 5 |
385 ± 5 |
nm |
|
|

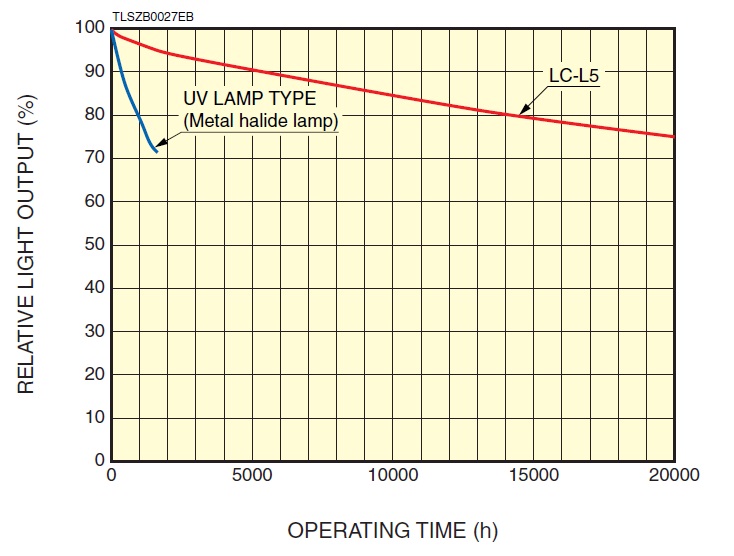

LED Service Life 3 |
20 000 |
h |
||||
|
Input Voltage (DC) |
36 ± 2 |
V |
||||
|
Power Consumption (Max.) |
180 |
450 |
W |
|||
|
Cooling Method 4 |
-001 |
Forced air cooling by fan motor (blowing fan type) |
— |
|||
|
-002 |
Forced air cooling by fan motor (suction fan type) |
|||||
|
Operating Ambient Temperature |
+5 to +40 |
°C |
||||
|
Storage Ambient Temperature |
-10 to +50 |
°C |
||||
|
Operating Ambient Humidity |
20 to 80 (No condensation) |
% |
||||
|
Storage Ambient Humidity |
Below 80 (No condensation) |
% |
||||
|
External Control |
Lighting control, Irradiation power adjustment, Various alarm signal outputs |
— |
||||
|
Applicable Standard |
IEC62471: 2006 Risk Group3 |
— |
||||
|
IEC61326-1: 2005 Group1 ClassA |
||||||
