Description
The Hamamatsu L12515 UV Enhanced Type Compact UV-VIS S2D2 Fiber Light Source contains the world’s smallest compact deuterium lamp (S2D2 lamp). Compared to conventional S2D2 lamps, the L12515 gives a higher S/N ratio by enhancing the light output in the UV region. Even with a small and portable size, the L12515 provides high output, high stability, and low voltage operation, making it ideal for assembly into compact chemical analysis devices.
Applications
- Spectrophotometry
- Environmental Measurement
- Absorption Spectrum Measurement
- Biological Measurement
- Semiconductor Inspection
- Optical Component Inspection
Features
- Compact: 74 mm x 40 mm x 110 mm

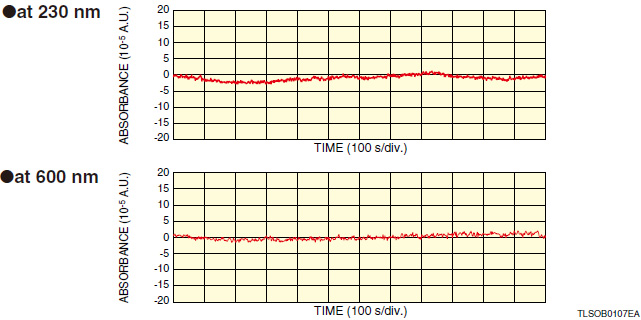

- High Stability: Fluctuation 0.004 %p-p (Typ.) (Equivalent to 2 x 10-5 A.U.)
- Long Service Life: 1500 hours guaranteed (compact deuterium lamp)

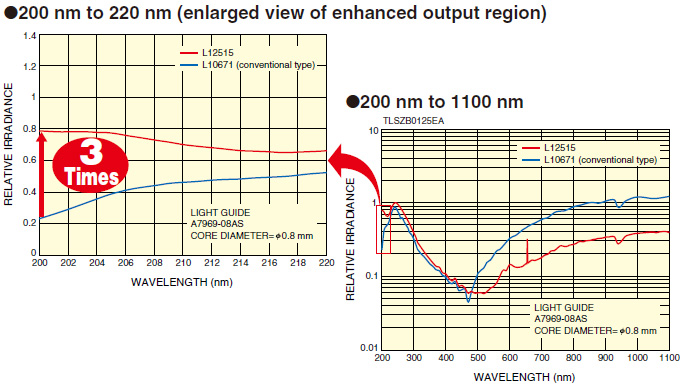

- Improved S/N Ratio Due to Enhanced Output in the UV Region
- External Control
- Shutter Function
Specifications
Parameter |
Description / Value |
|
Spectral Distribution |
200 nm to 1600 nm |
|
Built-in Lamps |
Compact Deuterium Lamp Tungsten Lamp 3 |
|
Output Stability |
Fluctuation (Typ.) |
0.004 %p-p (Equivalent to 2×10^-5 A.U.) |
Drift (Max.) |
±0.25 %/h |
|
Input Voltage (AC) 12 |
100 V to 240 V (50 Hz/60Hz) |
|
Power Consumption 1 |
10 VA |
|
Weight |
230 g |
|
Light Guide Connector |
SMA905D |
|
Shutter |
Provided as Standard |
|
External Control |
Lamp ON / OFF |
|
Shutter Open / Close |
||
Lamp ON/OFF, Main Power ON/OFF, Status Signal |
||
Main Unit Switch |
Shutter Open / Close |
|
Operating Ambient Temperature |
0 °C to +40 °C |
|
Operating Ambient Humidity |
Below 80 % |
|
Storage Temperature |
-10 °C to +60 °C |
|
Storage Humidity |
Below 85 % |
