Description
Hamamatsu L12530-01 EX-mini Compact Excimer Lamp Light Source is ideal for R&D work. Hamamatsu has shrunk their popular RF discharge excimer lamp into a compact shape that still provides the same great performance. The EX-mini delivers simple yet highly accurate testing and evaluations using vacuum UV light whenever and wherever needed.
Features
- All-in-one light source built into an irradation exposure box,
- Small enough to carry,

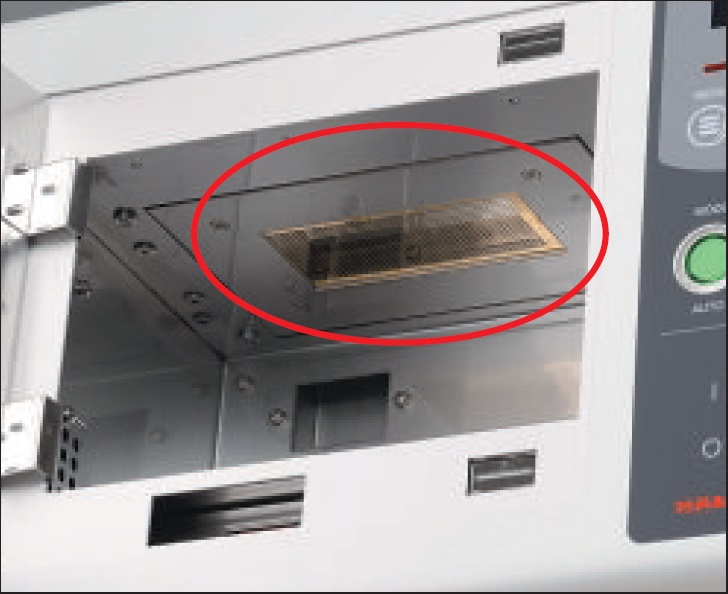

- Uniform irradiation and high output,
- Ozone decomposition unit for safe and convenient indoor exhaust,
- High safety design via interlocks and error signals,
- Universal input power from 100VAC to 240VAC,
- Instantaneous lamp ON / OFF operation.
Specifications
|
Irradiance |
50mW/cm2 or more |
|
Emission wavelength |
172 nm |
|
Irradiation area size (W x H) |
86mm x 50mm |
|
Lamp service life |
1000 hr |
|
Input Voltage |
100VAC to 240VAC |
|
Power consumption |
130 VA or less |
|
Cooling method |
Forced air cooling using duct or fan |
|
Duct suction air flow rate |
0.25 m3/min to 0.35 m3/min |
|
Operating ambient temperature/humidity |
+5 °C to +35 °C / below 60 % (no condensation) |
|
Storage ambient temperature/humidity |
-25 °C to +55 °C / below 80 % (no condensation) |
|
Control method |
Panel button control / external control |
—
