Description
Hamamatsu L12848-305 UVCL (Ultraviolet Cathode Emitting Light Source) is a deep UV light source that is made mercury free by utilizing the excited luminescence from an electron beam. It has approximately 8 times higher output at a 305nm peak wavelength compared to a UVB LED. The very compact design and integrated power supply make it easy to install into many kinds of instruments.
Application
- Fluorescence analysis
- UV curing
- Environmental analysis
- Material resistance evaluation
Features
- Compact size
- High output:Approx. 8 times higher than LED (310 nm)
- Mercury-free
- Long service life: 5000 hours guaranteed
- Does not require designing a power supply and housing
Specifications
|
Parameter |
Description / Value |
||
|

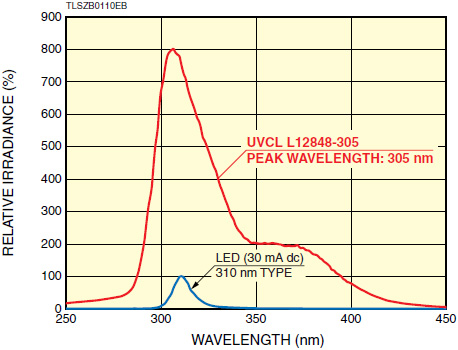

Spectral distribution 1 |
290 nm to 400 nm |
||
|
Peak wavelength |
305 nm |
||
|
Light output stability |
Fluctuation (p-p) |
Max. |
0.3 % |
|
Drift |
Max. |
±3 %/h |
|
|
Guaranteed service life 2 |
5000 h |
||
|
Light-emitting point size |
Approx. 5 mm diameter |
||
|
Input voltage (AC) 34 |
100 V to 240 V (50 Hz / 60 Hz) |
||
|
Power consumption |
6 W |
||
|
External control |
Lamp ON/OFF Lamp status signal |
||
|
Operating ambient temperature |
0 °C to +40 °C |
||
|
Operating ambient humidity |
Below 80 % (no condensation) |
||
|
Storage temperature |
-10 °C to +60 °C |
||
|
Storage humidity |
Below 85 % (no condensation) |
||
|
Applicable standards |
CE marking |
||
|
Weight |
Approx. 230 g |
||
—
