Hamamatsu L6605 60W High Output Xenon Flash Lamp

Hamamatsu L6605 60W Xenon Flash Lamp use high-performance barium-impregnated (BI) electrodes – both anode and cathode. The degradation of BI electrodes is drastically reduced, even in these short-arc lamps, which provides a long service life. These SQ type flashlamps sustain excellent stability over their entire extended service life.

Applications

  • Stroboscope for FA High Speed Image Processing,
  • Industrial Stroboscope,
  • Pollution Analysis,
  • Environmental Analysis.

Features

  • High Stability: Fluctuation (p-p) 3% Max.,
  • High Input Energy: 1 J (per one flash),

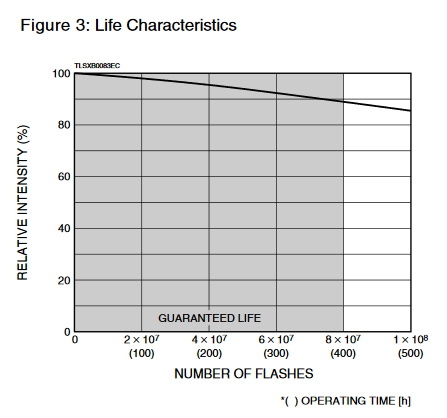

  • Long Life: 8 × 107flashes Min.,
  • Short Arc: 3 mm,
  • Spectral Distribution: 190 nm to 2000 nm (Sapphire glass window type),
  • High Repetition Rate Meeting TV rate: 60 Hz,

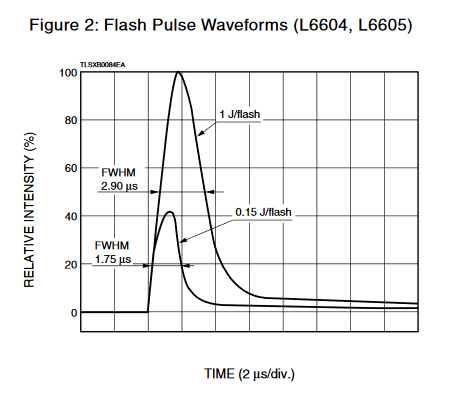

  • Short flash pulse-width (FWHM): 2.90 μs (at 2 μF, 1000 V),
  • Built-in Reflective Mirror/1.5 Times Brighter.




Specifications

Type 60 W type
Lamp Shape Metal-can
Features High output, efficient light input to light guide
Lamp Diameter 29 mm
Arc Size 3 mm
Window Material Sapphire glass
Spectral Distribution (Short) 190 nm
Spectral Distribution (Long) 2000 nm
Recommended Supply Voltage 700 to 1000 V dc
Trigger Voltage (p-p) 5 to 7 kV
Max. Average Input [continuous] 60 W
Max. Average Input Energy [Single] 1 J
Repetition Rate Max. 60 Hz
Output Stability Fluctuation Max. 3 %
Life Min. 1.2 x 107 flash
Cooling Method Convection cooling




SKU: HAM L6605 Categories: , Tag:

Description

Hamamatsu L6605 60W Xenon Flash Lamp use high-performance barium-impregnated (BI) electrodes – both anode and cathode. The degradation of BI electrodes is drastically reduced, even in these short-arc lamps, which provides a long service life. These SQ type flashlamps sustain excellent stability over their entire extended service life.

Applications

  • Stroboscope for FA High Speed Image Processing,
  • Industrial Stroboscope,
  • Pollution Analysis,
  • Environmental Analysis.

Features

  • High Stability: Fluctuation (p-p) 3% Max.,
  • High Input Energy: 1 J (per one flash),
  • Long Life: 8 × 107flashes Min.,
  • Short Arc: 3 mm,
  • Spectral Distribution: 190 nm to 2000 nm (Sapphire glass window type),
  • High Repetition Rate Meeting TV rate: 60 Hz,
  • Short flash pulse-width (FWHM): 2.90 μs (at 2 μF, 1000 V),
  • Built-in Reflective Mirror/1.5 Times Brighter.




Specifications

Type 60 W type
Lamp Shape Metal-can
Features High output, efficient light input to light guide
Lamp Diameter 29 mm
Arc Size 3 mm
Window Material Sapphire glass
Spectral Distribution (Short) 190 nm
Spectral Distribution (Long) 2000 nm
Recommended Supply Voltage 700 to 1000 V dc
Trigger Voltage (p-p) 5 to 7 kV
Max. Average Input [continuous] 60 W
Max. Average Input Energy [Single] 1 J
Repetition Rate Max. 60 Hz
Output Stability Fluctuation Max. 3 %
Life Min. 1.2 x 107 flash
Cooling Method Convection cooling





Additional information

Weight 1 lbs
Dimensions 1 × 1 × 1 in
