Description
Hamamatsu L9566 Lightningcure Spot light source LC8 has a built-in RS232C port to allow PC or microcomputer control. This allow users to store 9 types of 7-step programs in the memory, so optimal irradiation conditions matching the component for bonding can be set just by changing the program number. This holds true even when multiple bonding components are flowing in the same production process or when shifting to different production lines. The LC8 is especially ideal for components that must be fixed in place with high precision. The mounting positions of these components often deviate due to stress warping and contraction in the adhesive that causes positional shifts.
Features
- Long service life,
- One-touch replacement,
Simplified lamp replacement
- Full line-up of external control equipment,
- Clever layout allows a compact body,
- Great energy saving benefits,
- Instantaneous power-outage response program,
- Power supply compatible in world-wide,
- CE marking compliance,
- Selectable positions of light guide port,

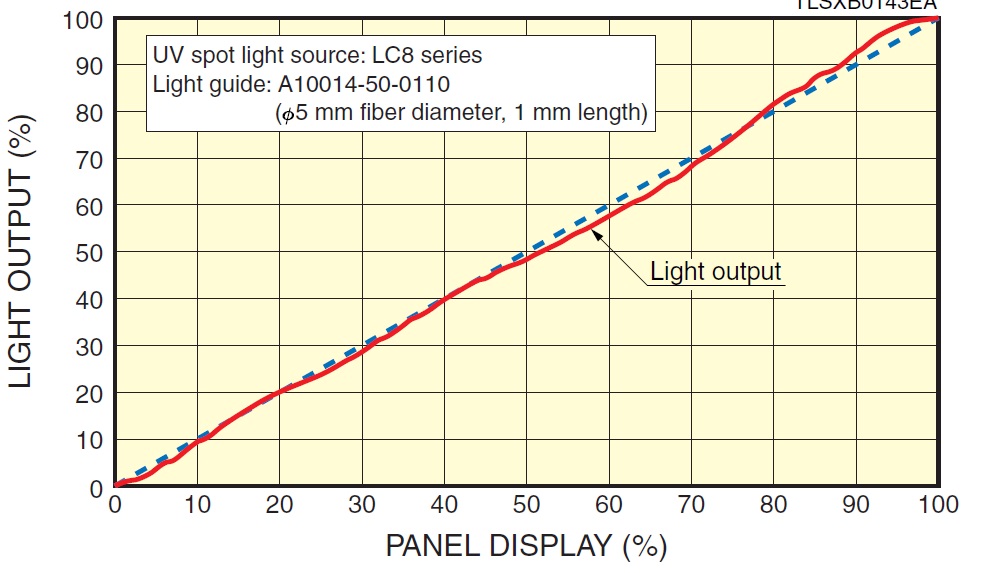

- Irradiance adjustable anywhere within 0 to 100 %.
Specifications
| Light Guide Port | Rear |
| Lamp Replacement Position | Operation panel (front) |
| UV Intensity (Typ.) A | 4500 mW/cm2 Typ. (at 365 nm, -01A type) |
| Radiant Wavelength Range | Refer to the SELECTION GUIDE |
| Lamp for Maintenance | Refer to the SELECTION GUIDE |
| Lamp Service Life | Refer to the SELECTION GUIDE |
| Power Supply Input | 100 V ac to 240 V ac (100 V / 200 V auto switching), single phase 47 Hz to 63 Hz |
| Power Consumption | 280 VA Typ. |
| Weight | Approx. 6.4 kg |
| Operating Ambient Temperature | +5 °C to +35 °C |
| Storage Ambient Temperature | -10 °C to +70 °C |
| Operating and Storage Humidity | Less than 80 % (no condensation) |
