Description
The Hamamatsu part number L11798-01 Deuterium Lamp H2D2 Light Source Unit has a MgF2 window material with a guatanteed lifetime of 1000 hours. The H2D2 light source unit contains a high-brightness, high-end deuterium lamp (H2D2 lamp) that emits light at a brightness 6 times higher than other current deuteri- um lamps (L2D2 lamps). Despite its high brightness, the H2D2 is highly stable, has a long service life, and allows air-cooled operation by a specially designed housing.
Applications
- Semiconductor Inspection,
- Film Thickness Measurement,
- Electrostatic Remover,
- Spectrophotometry etc.
Features
- High Brightness: 6 times (compared to conventional model),
- High Stability: Fluctuation 0.05 %p-p (Max.) Drift +/- 0.3 %h (Max.),
- Synthetic silica window,

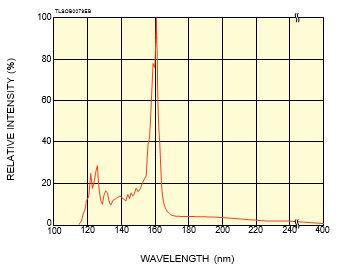

Spectral distribution
- Compressed air cooling (needs no cooling water),
- External Control,
- Replaceable lamp.
- Package:
- Built-in Lamp (L12098),
- Power Supply,
- Light Source to Power Supply Cable,
- AC Cable.
Specifications
| Series | H2D2 Light Source Unit |
| Electrode Structure | – |
| Window Material | MgF2 |
| Spectral Distribution (Short) | 115 nm |
| Spectral Distribution (Long) | 400 nm |
| Aperture Diameter | 0.6 mm |
| Output Stability Drift Max. | +/- 0.3 %/h |
| Output Stability Fluctuation (p-p) Typ. | 0.05 % |
| Guaranteed Life | 1000 h |
| Required Discharge Starting Voltage Min. | – V dc |
| Anode Current | 300 +/- 30 mA dc |
| Tube Drop Voltage Typ. | – V dc |
| Filament Warm-up Voltage | – V dc, V ac |
| Filament Warm-up Current Typ. | – A dc, A ac |
| Filament Warm-up Time | 30 s |
| Filament Operating Voltage | – V dc |
| Filament Operating Current Typ. | – A dc |
