Hamamatsu L13651 2W Xenon Flash Lamp Module

The L13651 series is an easy-to-handle, single-package lamp module designed to extract the full performance from the xenon flash lamp. This lamp ensures low electromagnetic noise and operates on a 5 V mobile battery, making equipment design easier. The L13651 series standard type offers amazingly high electrode positioning accuracy to ±0.05 mm making it ideal for applications requiring even higher performance of the equipment. This series also includes an SMA fiber adapter type needing no lens design work.

Applications

  • Spectroscopic analysis
  • Blood analysis
  • Environmental analysis
  • Water pollution analysis (TOC, TN, etc.)
  • Air pollution analysis (NOx, SOx, etc.)
  • Gas analysis (CH4, etc.)

Features

  • Compact size
  • Operates on 5 V mobile battery
  • High stability: 0.4 %CV Typ.
  • Long life: 1 × 10^9 flashes
  • Repetition rate: 1250 Hz Max.
  • Broad spectrum: UV to middle IR

 Specifications

Parameter

 Description / Value Unit
Arc size 1 mm
Window material UV glass –
Spectral distribution 185 to 2000 nm
Maximum input energy (per flash) See operating conditions. mJ
Maximum average input (continuous) See operating conditions. W
Typ. 0.4
Max. 2
Guaranteed Life3 1 x 10^9 flashes
Operating time with battery 4 4 h
Input voltage range 4.75 to 5.5, 10.8 to 13.2 V
Input current 1 A
Inrush current 1.5 A
Trigger input Rectangular wave  2.5 V to 5 V; pulse width must be 10 µs or more.5 —
Trigger input impedance 330 W
Cooling method6 Not required —
Standard type Approx. 103
SMA fiber adapter type Approx. 108
Operating temperature range 0 to +40 °C
Storage temperature range -40 to +90 °C
Operating humidity range Below 85 % (no condensation) –
Storage humidity range Below 95 % (no condensation) –
EMC standards IEC61326-1: 2012 Group 1, Class B —
Safety standards IEC62471: 2006 Risk Group 3

1. Internal: Adjustable with variable trimmer. External: Variable with control voltable of 3.2 V to 4.8 V.

2. Light output stability is given by: Light output stability (% CV) = light output standard deviation / average light output x 100 (When repetition rate is 10 Hz or more.)

3. The life end is defined as the time when the light output at 190 nm to 1100 nm in 2 W operation fails below 50 % of the initial value or when the light output stability exceeds 20 % CV.

4. Time until the unit turns off. (output and stability are not considered.) Operating conditions: Input voltage: 5 V, Main discharge voltage: 600 V, Main discharge capacitance: 0.141 µF, Repetition rate: 79 Hz; Battery capacity: 5400 mAh/3.7 V

5. Only for external control; synchronized with rising edge.

6. Cooling is required when the package temperature exceeds 45 °C during operation.

Operating Conditions

Type No. Main discharge capacitance (µF) Main discharge voltage (V) Maximum Input energy7 (per flash) (mJ) Maximum repetition rate8 (Hz)

Maximum average Input9

(W)
Input voltage: 4.75 V to 5.5 V Input voltage: 10.8 V to 13.2 V Input voltage: 4.75 V to 5.5 V Input voltage: 10.8 V to 13.2 V
L13651-*1 0.141 400 11.3 177 177 2 2
500 17.7 113 113 2 2
600 25.4 79 79 2 2
L13651-*2 0.094 400 7.5 266 266 2 2
500 11.9 170 170 2 2
600 16.9 118 118 2 2



L13651-*3 0.047 400 3.8 400 532 1.5 2
500 5.9 255 340 1.5 2
600 8.5 177 236 1.5 2



L13651-*4 0.02 400 1.6 625 1250 1 2
500 2.5 400 800 1 2
600 3.6 278 555 1 2

7. Maximum input energy (per flash), E = 1/2CV^2, C: Main discharge capacitance (F) V: Main discharge voltage (V)

8. In order to operate the unit with good stability, recommend repetition rate is 10 Hz or more.

9. Maximum average input (continuous), W = E x f, E: Maximum input energy (per flash) f: Repetition rate (Hz)

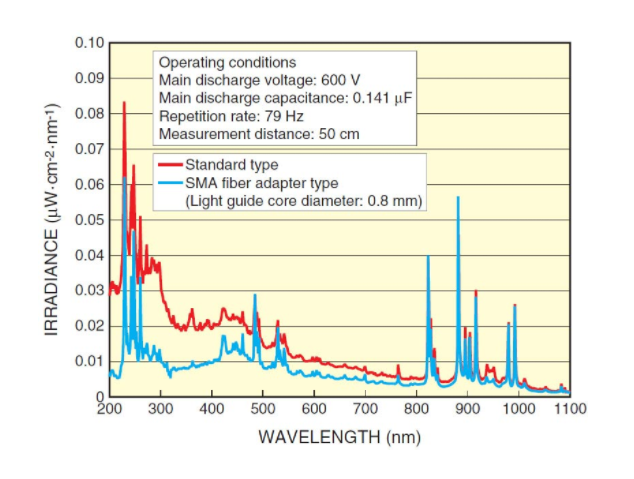

Spectral irradiance (Typ.)

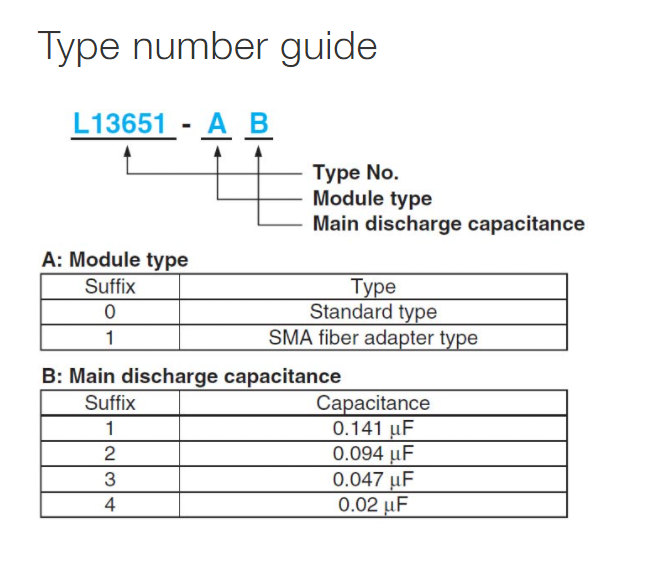

Type Number Guide
